| chip | 660/905 |
| Emission wavelength | 660nm( ±5nm) |
| Absorption wavelength | 905nm( ±5nm) |
| spo2 test range | 70%-90% |
| spo2 accuracy | ±2%(90%-100%) |
| ±3%(70%-89%) |
| Pulse rate test range | 30-245bpm |
| Pulse rate accuracy | ±1 bpm(30-59bpm) |
| ±2 bpm(60-149bmp) |
| ±3 bpm(150-245bmp) |
Specifications:
1.20pin,2.7m
2.Compatible model:This original o 20-pin Rainbow sensor is for use with o monitors
that require the o Rainbow sensors to read spo2,spCO(carbon
monoxide) and SpMet(methemoglobin).
OEM
2201 DCI-DC-3(Adult clip,3 feet) 2069 DCIP-DC-3(Pediatric clip,3
feet)
3.One year warranty
4.CE&ISO13485 certification
5. OEM/ODM available
OEM P/N:
- 2053 DCI-DC3 (Adult Clip, 3 feet)
- 2054 DCI-DC12 (Adult Clip, 12 feet)
- 2256 DCIP-DC3 (Pediatric Clip, 3 feet)
- 2257 DCIP-DC12 (Pediatric Clip, 12 feet)
- 2643 DBI-DC3 (Adult Soft, 3 feet)
- 2644 DBI-DC12 (Adult Soft, 12 feet)
rainbow® DCI-DC3 / DCI-DC8 / DCI-DC12 Sensors
rainbow® DCIP-DC3 / DCI-DC8 / DCIP-DC12 Sensors
o 20pin Spo2 sensor for RADICAL-7 RAD-57
o Rainbow 2201 DCI-DC-3 Neonate Wrap SpO2 Sensor
| OEM P/N | Part No. | Description(Cable & Connector) |

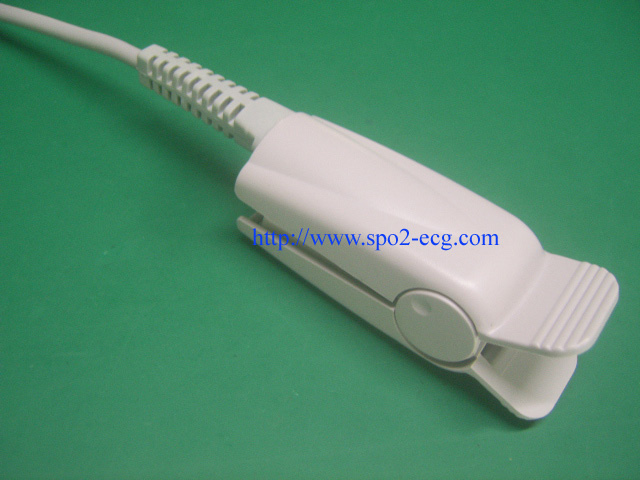

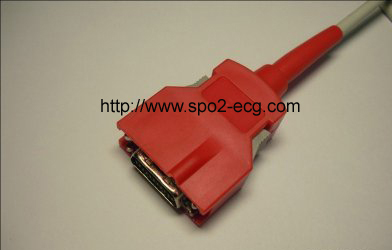

| o Rainbow | MSJ0001R | Adult finger spo2 sensor ,o 20pin,Red connector 3M |
| MSJ0002R | Pediatric finger spo2 sensor ,o 20pin,Red connector 3M |

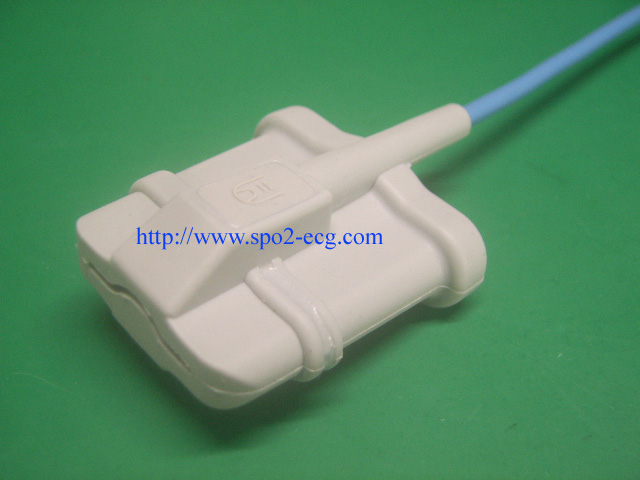

| MSJ0003R | Adult silicone soft spo2 sensor ,o 20pin,Red connector 3M |
| MSJ0004R | Pediatric silicone soft spo2 sensor ,o 20pin,Red connector 3M |
| MSJ0005R | Neonate silicone soft wrap spo2 sensor ,o 20pin,Red connector 3M |
| MSJ0006R | Adult ear clip spo2 sensor ,o 20pin,Red connector 3M |
 |  |
 |
All the goods from our company enjoy the following advantages:
1. The production and management systems meets the requirements of
ISO13485.
2. All the raw materials meets requirements of Bio-compatibility.
3. The pins of connector is made of copper plated gold by turning
machine. The connectors are solid.
4.LED/PD comes from Korea OD Tech company and made of ceramic and
epoxy resin which make our sensors high accuracy and have data
fast.
http://www.spo2-ecg.com
Raw cable production line:
Cable Facts:
-Latex-free
-Shielding, anlistatig, low noise
-Biocompatibility: all patient contact materials are latex free and
have been tested according to ISO10993-5, ISO10993-10
-Jacket material can be medical grade PVC, TPE, TPU, Silicone
Our Services
1.High quality and the best price;
2.Standard packing and fast delivery;
3.Provide technology support at any time;
4.Supply OEM/ODM service;
5.Sample order and small order are acceptable;
6.The methods of delivery: DHL,EMS,FEDEX,UPS,By air or By sea;
7.All products are shifting 12 months warranty and 3 months
guarantee for replcement.
