Detailed Product Description
Original o part number: 1269/LNOP DCI(Adult), 1276/LNOP
DCIP (Pediatric), 1504/LNOP YI (Multi-site). This short-cable
sensor

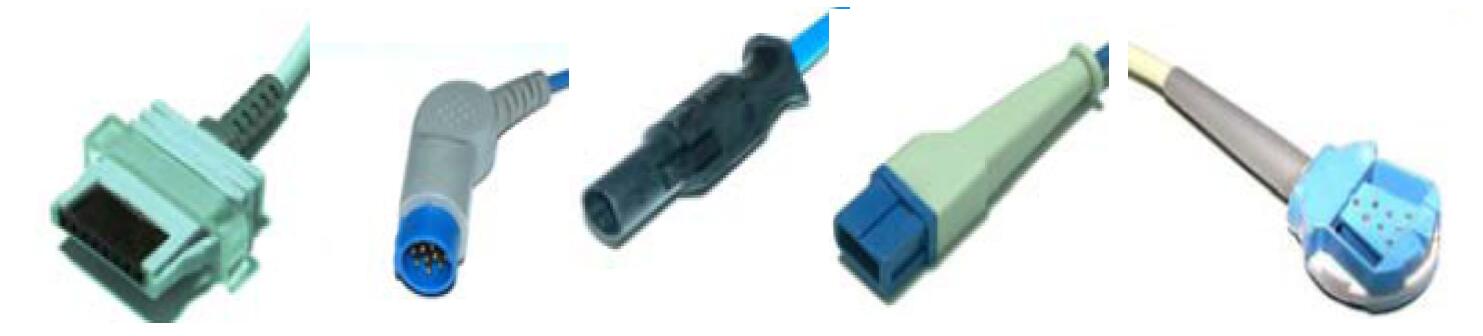

need extension cable, compatible for monitors: o monitors
with tongue-type connectors
http://www.spo2-ecg.com
MDE:EscortII OPT30:Prism ,GEMarquette:,Pro1000,V300
,INVIVO:T8 , Schiller: , ZOLL: ,Datascope:
Trio,Passport2,Spectrum
| OEM P/N | Part No. | Description(Cable & Connector) |
| MSA0001 | 14PIN male 3M->DB9F,L=2.5M |
  |  |
o LNCS
| OEM P/N | Part No. | Description(Cable & Connector) |
| MSA0002 | 14PIN male 3M->o 6PIN, L=2.5M |
|  |
Cable Material: Medical-grade TPU
Storage and Transport Environment: -10°C ~ +40°C
Operating Temperature: +5°C~+40°C
All materials are touched by patients which are latex-free. We
assure the best service, comfortable, wonderful and excellent
products for you
TECHNICAL PARAMETERS:
| LEDS | Red | 660nm normal |
| Infrared | 880 / 905 / 940nm normal |
| Test Range | Oxygen Saturation(%SpO2) | 0 % to 100 % |
| Pulse Rate(bpm) | 30 to 245 |
| Accuracy | SpO2 | ± 2%(90% -1 00 %) |
| ±3%(70%-89 %) |
| unspecified(0-69 %) |
| Pulse Rate | ±1 bpm(30 - 59bpm) |
| ±2 bpm(60 - 149bmp) |
| ±3 bpm(150 - 245bmp) |
| Storage and Transport Environment | - 10°C~ + 40°C |
| Operating Temperature | + 5°C~ + 40°C |
| Operating/Storage/Transportation humidity | 0% - 80% |
| Hyperbaric pressure | 86kPa - 106 kPa |
Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers,
the hard plastic shell for fixed sensors is larger and fits adult
measurement, the instruments of different brand its probe shell may
be slightly different, different shell shape cannot influence the
performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition
signal, the hard plastic shell used in fixed sensor is smaller and
measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect
signals, the soft gel coat used in fixed sensors is bigger,
suitable for adults. Different brands of instruments and its probe
coat may be slightly different, different shape of coat cannot
influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal
acquisition signals on his foot, fixed sensors used in soft gel
coat is bind package type, suitable for newborns.
