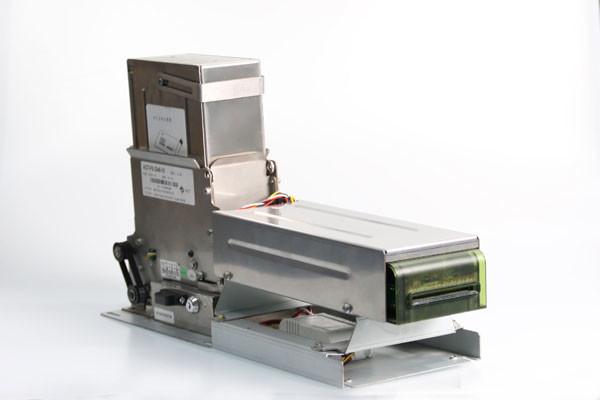

KH-F5-2 Single box card issuing machine, mainly used in finance,
communications, and medical industry self-service open-card, sales
card etc.The product mainly adopt the hook card issuers, with
convex word card can realize accurate issue card; card machine
comes with a safety lock, with the installation of electric reader,
read and write operations on the card.
Despriction:
● The use of reverse hook type card hook card, can accurately issue
a variety of IC card and bank (Convex) card.
● The design of the hook type push hook is used to reduce the
friction between the card and the card.
● With safety lock card box, and recovery box Design, improve the
safety of the card management.
● Can cooperate with high-end electric reader,read and write
operations on the card.
● Convenient, simple, stable, low noise, fast speed.
● Multiple sets of sensors can check Storage box pre - empty,
storage box-empty, recycling box full, Stop card position etc.
● Can accurately determine the location of the stop card and the
card status prompt function.
● Support online upgrade program.
Technical Parameter
| Name | Parameter |
| Card Size | L: 86mm W:54mm H:0.76mm±0.1mm |
| Communication mode | RS-232 semiduplex 4800,9600,19200,38400,57600 bps(Automatic acquisition baud rate) |
| Work Volage | DC24V±5% 2A |
| Quiescent current | 100mA |
| Max work current | 5A |
| The default baud rate | 9600b/s |
| Storage tank loading(unit) | 165 |
| Working life | (magnetic) head ≥100million times, IC contactor ≥50million times |
| Work Environment | Temperature / humidity 0℃--50℃/0-90%(No condensation) |
| Storage Environment | Temperature / humidity -10℃—60℃/0—90%(No condensation) |
Application
Financial, medical, transportation, communication etc industry
