Compatible: MEC-509,509+,503,507,OEM No.512A-30-06074
Mindray with CSI Tech
| OEM P/N | Part No. | Description(Cable & Connector) |
| 512A-30-06074 | MDA0002 | 8ft Blue Cable, 5pin,1B>>DB9F,with CSI Tech |
  |  |
Compatible:PM5000,PM6000,PM8100;OEM No.0010-21-11957
Mindray with Mindray Tech
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-21-11957 | MDA0003 | 8ft Blue Cable, Round 12pin>>DB9F,with Mindray Tech |
  | |
Compatible: VS800(Mindray module),MEC-1000 MEC1200;PM-
7000,6201,8000,9000,OEM No.0010-20-42594
Mindray with Mindray Tech
| OEM P/N | Part No. | Description(Cable & Connector) |

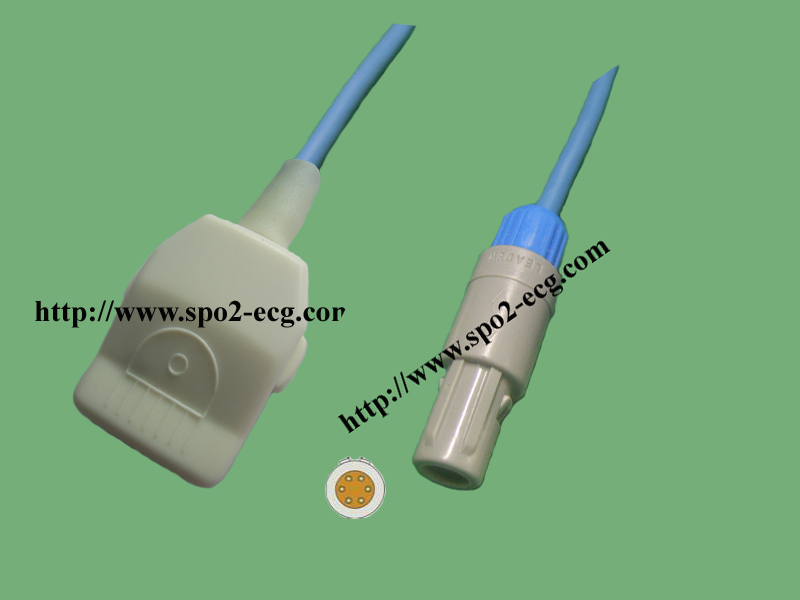

| 0010-20-42594 | MDA0005 | Redel 6PIN male (dual) >> DB9F.with Mindray tech |
  |  |
Compatible: PM-6800,BeneView T5;OEM No.0010-30-42737
Mindray with Mindray Tech
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-30-42737 | MDA0009 | Round 7pin >> DB9F .with Mindray tech |
  |  |
Mindray with o Tech
PM-6000 ( o module, 12pin)OEM No.0010-30-12452
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-30-12452 | MDA0006 | 8ft,Round 12p>DB9F,with o Tech |
| |
PM-6800 (o module, 7pin), BeneView
T5/T6/T8;OEM No.0010-30-42738
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-30-42738 | MDA0009B | 8ft,Round 7pin >> DB9F,with o Tech |
| |
PM9000express(.o).PM8002,9201,(PM-
6201,7000,8000,M1K0,M2K0 since 2006);
OEM Number:0010-30-42625
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-30-42625 | MAD0007 | 8ft,Readel 2bit(dual) 60° 6p>DB9F,with o Tech |
 | |
PM-9000,9100,9200,(PM-
6201,7000,8000,M1K0,M2K0before 2006)
OEM No.0010-30-42602
|
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-30-42602 | MAD0008 | 8ft,Readel 2bit(dual) 40° 6p>DB9F,with o Tech |
|
MINDRAY T5,T8;OEM Number: 0010-20-42712
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-20-42712 | MDA0009C | 8ft,Round 8pin>DB9F,with o Tech |
 |
Mindray with o Tech
PM9000express, PM9000, 9100,9200 (o Tech)
| OEM P/N | Part No. | Description(Cable & Connector) |
| MAD0008A | 8ft,Redel 6pin(2bit)>o 6pin,with o Tech |
|  |
Mindray with o Tech
PM6000 (o module)
OEM No.6200-30-11721
| OEM P/N | Part No. | Description(Cable & Connector) |
| 6200-30-11721 | MDA0006A | 8ft, Round 12pin>o 6pin,with o Tech |
|  |
Mindray with Tech
VS800,8002,9201,PM7000(Since Jan. 2006)
patient monitor of module and 6pin plug
(80° between 2bit)
| OEM P/N | Part No. | Description(Cable & Connector) |
| 0010-20-42595(E) | MDA0007A | 8ft,Redel 6pin(2bit)>DB9F,with Tech |
 | |
TECHNICAL PARAMETERS:
| LEDS | Red | 660nm normal |
| Infrared | 880 / 905 / 940nm normal |
| Test Range | Oxygen Saturation(%SpO2) | 0 % to 100 % |
| Pulse Rate(bpm) | 30 to 245 |
| Accuracy | SpO2 | ± 2%(90% -1 00 %) |
| ±3%(70%-89 %) |
| unspecified(0-69 %) |
| Pulse Rate | ±1 bpm(30 - 59bpm) |
| ±2 bpm(60 - 149bmp) |
| ±3 bpm(150 - 245bmp) |
| Storage and Transport Environment | - 10°C~ + 40°C |
| Operating Temperature | + 5°C~ + 40°C |
| Operating/Storage/Transportation humidity | 0% - 80% |
| Hyperbaric pressure | 86kPa - 106 kPa |
Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers,
the hard plastic shell for fixed sensors is larger and fits adult
measurement, the instruments of different brand its probe shell may
be slightly different, different shell shape cannot influence the
performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition
signal, the hard plastic shell used in fixed sensor is smaller and
measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect
signals, the soft gel coat used in fixed sensors is bigger,
suitable for adults. Different brands of instruments and its probe
coat may be slightly different, different shape of coat cannot
influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal
acquisition signals on his foot, fixed sensors used in soft gel
coat is bind package type, suitable for newborns.
